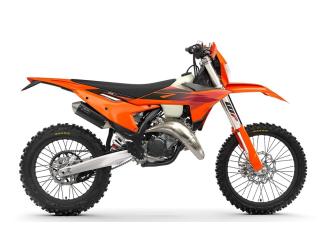

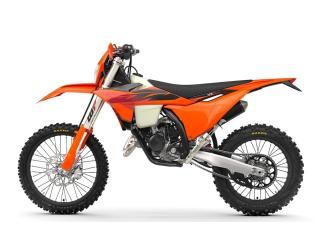

2027 KTM 125 XC-W

Frame design

CENTRAL DOUBLE-CRADLE-TYPE 25CRM04 STEEL

Front brake

DISC BRAKE

Rear brake

DISC BRAKE

Rear subframe design

ALUMINUM-REINFORCED POLYAMIDE

Chain

520 X-RING

Front suspension

WP XACT-USD, Ø 48 MM

Rear suspension

WP XPLOR SHOCK ABSORBER WITH PDS

Suspension travel (front)

300 MM

Suspension travel (rear)

310 MM

Front suspension adjustment

COMPRESSION AND REBOUND ADJUSTABLE

Rear suspension adjustment

COMPRESSION AND REBOUND ADJUSTABLE, PRELOAD ADJUSTER

Seat height

963 MM

Ground clearance

347 MM

Tank capacity (approx.)

9 L

Weight (without fuel)

96.2 KG

Design

1-CYLINDER, 2-STROKE ENGINE

Displacement

124.8 CM³

Transmission

6-SPEED

Fuel-mixture generation

KEIHIN EFI, THROTTLE BODY 39 MM

EMS

VITESCO TECHNOLOGIES EMS

Clutch primary drive teeth

73

Primary drive

23:73

Clutch

WET MULTI-DISC DS CLUTCH, BREMBO HYDRAULICS

Engine cylinder

SINGLE CYLINDER

Engine stroke

2-STROKE

2027 KTM 125 XC-W

FULL GAS

Looking to regain its title in the 125cc Junior Enduro classes, the KTM 125 XC-W represents the pinnacle of 2-stroke engine technology, aimed at ambitious junior enduro racers and hobby riders asking for a performance-focused machine - and first-place trophies.

*This is a competition-only model with no street-legal homologation.
