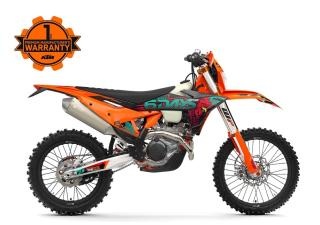

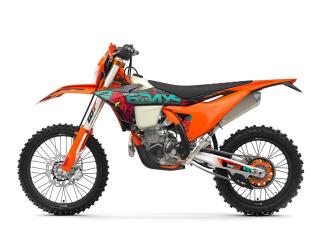

2027 KTM 500 EXC-F 6DAYS

Frame design

CENTRAL DOUBLE-CRADLE-TYPE 25CRM04 STEEL

Front brake

DISC BRAKE

Rear brake

DISC BRAKE

Rear subframe design

ALUMINUM-REINFORCED POLYAMIDE

Chain

520 X-RING

Front suspension

WP XACT-USD, Ø 48 MM

Rear suspension

WP XPLOR SHOCK ABSORBER WITH PDS

Suspension travel (front)

300 MM

Suspension travel (rear)

310 MM

Front suspension adjustment

COMPRESSION AND REBOUND ADJUSTABLE

Rear suspension adjustment

COMPRESSION AND REBOUND ADJUSTABLE

Seat height

963 MM

Ground clearance

347 MM

Tank capacity (approx.)

8.5 L

Weight (without fuel)

108.7 KG

Design

1-CYLINDER, 4-STROKE ENGINE

Displacement

510.9 CM³

Transmission

6-SPEED

Fuel-mixture generation

KEIHIN EFI, THROTTLE BODY 42 MM

EMS

KEIHIN EMS

Clutch primary drive teeth

72

Primary drive

29:72

Clutch

WET, DDS MULTI-DISC CLUTCH, BREMBO HYDRAULICS

Engine cylinder

SINGLE CYLINDER

Engine stroke

4-STROKE

2027 KTM 500 EXC-F 6DAYS

INCREASE YOUR BLAST RADIUS

Developed from KTM's ISDE-winning DNA, the KTM 500 EXC-F 6DAYS is built to dominate the toughest terrain on the planet. Combining explosive 500 cc performance with a race-proven chassis, it delivers unmatched power, control, and durability for extreme enduro conditions.

Compared to the standard model, the 6DAYS features a purpose-built race package designed for riders who demand maximum performance in the most demanding environments.

This motorcycle is designed, developed and produced in Austria.
