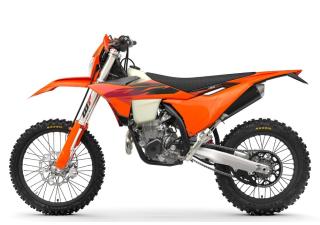

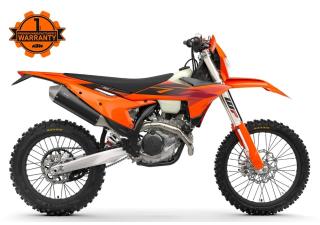

2027 KTM 450 EXC-F

Frame design

CENTRAL DOUBLE-CRADLE-TYPE 25CRM04 STEEL

Front brake

DISC BRAKE

Rear brake

DISC BRAKE

Rear subframe design

ALUMINUM-REINFORCED POLYAMIDE

Chain

520 X-RING

Front suspension

WP XACT-USD, Ø 48 MM

Rear suspension

WP XPLOR SHOCK ABSORBER WITH PDS

Suspension travel (front)

300 MM

Suspension travel (rear)

310 MM

Front suspension adjustment

COMPRESSION AND REBOUND ADJUSTABLE

Rear suspension adjustment

COMPRESSION AND REBOUND ADJUSTABLE, PRELOAD ADJUSTER

Seat height

963 MM

Ground clearance

347 MM

Tank capacity (approx.)

8.5 L

Weight (without fuel)

107.2 KG

Design

1-CYLINDER, 4-STROKE ENGINE

Displacement

449.9 CM³

Transmission

6-SPEED

Fuel-mixture generation

KEIHIN EFI, THROTTLE BODY 42 MM

EMS

KEIHIN EMS

Clutch primary drive teeth

72

Primary drive

29:72

Clutch

WET, DDS MULTI-DISC CLUTCH, BREMBO HYDRAULICS

Engine cylinder

SINGLE CYLINDER

Engine stroke

4-STROKE

2027 KTM 450 EXC-F

CHALLENGE THE EXTREME

The KTM 450 EXC-F rolls into the open class with a renewed appetite for finding the limit. Boasting a class-leading chassis, unflappable suspension, race-proven bodywork, and rider-focussed ergonomics - not to mention one of the winningest 450 cc engines in the class - the KTM 450 EXC-F is ready to launch off the line with the podium firmly in its sights.
